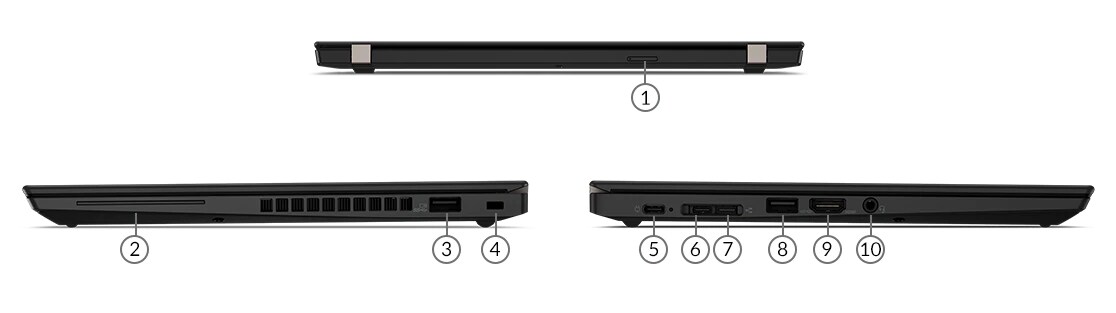

Overview
1. Nano-SIM card slot * | 6. USB-C 3.2 Gen 2 |
2. Smart card reader * | 7. Ethernet extension connector (mini RJ-45) * |
3. USB 3.2 Gen 1 (Always On) | 8. USB 3.2 Gen 1 |
4. Kensington Nano Security Slot | 9. HDMI 2.0 |
5. USB-C 3.2 Gen 2 | 10. Headphone / microphone combo jack (3.5mm) |
Notes:
- Items with * are only available on selected models
- The combination of 6 and 7 is side docking connector
Performance
Processor
Processor**[1]
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics |
| AMD Ryzen 3 PRO 5450U | 4 | 8 | 2.6GHz | 4.0GHz | 2MB L2 / 8MB L3 | AMD Radeon™ Graphics |
| AMD Ryzen 5 5600U | 6 | 12 | 2.3GHz | 4.2GHz | 3MB L2 / 16MB L3 | AMD Radeon Graphics |
| AMD Ryzen 5 PRO 5650U | 6 | 12 | 2.3GHz | 4.2GHz | 3MB L2 / 16MB L3 | AMD Radeon Graphics |
| AMD Ryzen 7 5800U | 8 | 16 | 1.9GHz | 4.4GHz | 4MB L2 / 16MB L3 | AMD Radeon Graphics |
| AMD Ryzen 7 PRO 5850U | 8 | 16 | 1.9GHz | 4.4GHz | 4MB L2 / 16MB L3 | AMD Radeon Graphics |
Notes:
- Ryzen 5 5600U is NOT available in EMEA.
Operating System
Operating System**[1]
- Windows® 11 Pro
- Windows 11 Home
- Windows 11 Home Single Language
- Windows 11 DG Windows 10 Pro 64
- Windows 10 Pro 64
- Windows 10 Home 64
- Windows 10 Home 64 Single Language
- Windows 10 IoT Enterprise LTSC
- Linux
- Ubuntu Linux
- No operating system
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.
Graphics
Monitor Support
Monitor Support
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®)
• HDMI supports up to 4K@60Hz
• USB-C supports up to 5K@60Hz
Chipset
Memory
Max Memory[1]
- 8GB soldered memory, not upgradable
- 16GB soldered memory, not upgradable
- 32GB soldered memory, not upgradable
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Type**[2]
| Disk Type | Interface | RPM | Offering | Security |
| M.2 2242 SSD | PCIe NVMe®, PCIe 3.0 x4 | - | 128GB / 256GB | - |
| M.2 2280 SSD | PCIe NVMe, PCIe x4 | - | 256GB / 512GB / 1TB | Opal 2.0 |
| M.2 2280 SSD | PCIe NVMe, PCIe 4.0 x4 Performance | - | 2TB | Opal 2.0 |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
- The SSD with PCIe 4.0x4 performance is downgraded to closer to PCIe 3.0x4 performance due to the system slot limitation.
Removable Storage
Multi-Media
Camera**
- HD 720p, with privacy shutter, fixed focus
- FHD 1080p + IR hybrid, with privacy shutter, fixed focus
- No camera
Battery
Battery**
- Integrated Li-Polymer 41Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
- Integrated Li-Polymer 54.7Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Max Battery Life[1]
- Models with 41Wh battery: MobileMark® 2018: 10.7 hr JEITA 2.0: 13.5 hr
- Models with 54.7Wh battery: MobileMark 2018: 15.4 hr JEITA 2.0: 18.1 hr
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Power Adapter**[1][2]
- 45W USB-C (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 45W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter
Notes:
- AC adapter offerings depend on the country.
- No power adapter is for special bid only.
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle (L/R/U/D) | Key Features |
| 13.3" | WUXGA (1920x1200) | None | IPS | 300 nits | Anti-glare | 16:10 | 1000:1 | 72% NTSC | 85°/85°/85°/85° | - |
| 13.3" | WUXGA (1920x1200) | None | IPS | 500 nits | Anti-glare | 16:10 | 1000:1 | 72% NTSC | 85°/85°/85°/85° | ThinkPad® Privacy Guard |
| 13.3" | WUXGA (1920x1200) | Multi-touch | IPS | 300 nits | Anti-glare | 16:10 | 1000:1 | 72% NTSC | 85°/85°/85°/85° | - |
| 13.3" | WQXGA (2560x1600) | None | IPS | 400 nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 85°/85°/85°/85° | Low power, low blue light |
Notes:
- California Electronic Waste Recycling Fee In California USA, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, please go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Notes:
- Non-backlit keyboard is only available for the models with black cover.
Mechanical
Dimensions (WxDxH)[1]
| Models | Dimensions |
| Models with aluminium top cover | 305.8 x 217.89 x 18.06 mm (12.04 x 8.58 x 0.71 inches) |
| Models with carbon fiber top cover | 305.8 x 217.39 x 18.97 mm (12.04 x 8.56 x 0.75 inches) |
| Models with PPS top cover | 305.8 x 217.06 x 18.19 mm (12.04 x 8.55 x 0.72 inches) |
Weight[2]
| Models | Weight |
| Models with WQXGA display, 41Wh battery, and black PPS top cover | Starting at 1.21 kg (2.67 lbs) |
| Models with WQXGA display, 41Wh battery, and storm grey top cover | Starting at 1.28 kg (2.82 lbs) |
| Models with WQXGA display, 54.7Wh battery, and black PPS top cover | Starting at 1.26 kg (2.78 lbs) |
| Models with WQXGA display, 54.7Wh battery, and storm grey top cover | Starting at 1.34 kg (2.94 lbs) |
| Models with WUXGA display, 41Wh battery, and black carbon fiber top cover | Starting at 1.19 kg (2.62 lbs) |
| Models with WUXGA display, 41Wh battery, and black PPS top cover | Starting at 1.25 kg (2.77 lbs) |
| Models with WUXGA display, 41Wh battery, and storm grey top cover | Starting at 1.33 kg (2.93 lbs) |
| Models with WUXGA display, 54.7Wh battery, and black carbon fiber top cover | Starting at 1.26 kg (2.77 lbs) |
| Models with WUXGA display, 54.7Wh battery, and black PPS top cover | Starting at 1.31 kg (2.88 lbs) |
| Models with WUXGA display, 54.7Wh battery, and storm grey top cover | Starting at 1.38 kg (3.04 lbs) |
Case Material**
- Villi black models: carbon fiber or PPS (top), magnesium (keyboard cover), aluminium (bottom)
- Storm grey & WWAN models: aluminium (top), magnesium (keyboard cover), aluminium (bottom)
- Storm grey & non-WWAN models: aluminium (top), aluminium (keyboard cover & bottom)
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Ethernet
- Gigabit Ethernet, Realtek RTL8111EPV, mini RJ-45 to RJ-45 via optional ThinkPad Ethernet Extension Adapter Gen 2, supports Wake-on-LAN
- No onboard Ethernet
WLAN + Bluetooth®**[1][2]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1
- Mediatek Wi-Fi 6 MT7921, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1
- Realtek Wi-Fi 6 RTL8852AE, 802.11ax Dual Band 2x2 Wi-Fi + Bluetooth 5.1
- Intel Wi-Fi 6 AX200, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1
- Qualcomm® Wi-Fi 6E QCNFA765, 802.11ax Dual Band 2x2 Wi-Fi + Bluetooth 5.1, M.2 Card
WWAN**
- Wireless WAN upgradable to 4G (with antenna ready)
- Quectel EM120R-GL, 4G LTE CAT12, M.2 card
- Quectel EM120R-GL, 4G LTE CAT12, M.2 card, with embedded eSIM functionality
- Qualcomm Snapdragon™ X55 5G Modem-RF System, Sub-6 GHz, M.2 card, with embedded eSIM functionality
- No support
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
- Wi-Fi 6 and Wi-Fi 6E full features might be limited by country level restrictions. 6GHz Wi-Fi 6E operation is dependent on the support of the operating system, routers/APs/Gateways that support Wi-Fi 6E, and the regional regulatory certifications & spectrum allocation.
- NFC is NOT available for the models with storm grey cover.
Ports[1]
Standard Ports
- 1x USB 3.2 Gen 1
- 1x USB 3.2 Gen 1 (Always On)
- 2x USB-C 3.2 Gen 2 (support data transfer, Power Delivery and DisplayPort™ 1.4)
- 1x HDMI 2.0
- 1x Headphone / microphone combo jack (3.5mm)
Optional Ports***[2]
- 1x Ethernet extension connector (mini RJ-45)
- 1x Side docking connector (Ethernet models only)
- 1x Smart card reader
- 1x Nano-SIM card slot (WWAN support models)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
- Ethernet and side docking connector are coexisting. On some models, both of them are equipped. On some models, neither of them is equipped. If your computer has Ethernet icon, it supports wired Ethernet connection with ThinkPad Ethernet Extension Adapter or ThinkPad Basic/Pro/Ultra Docking Station. If your computer does not have Ethernet icon, the Ethernet connector does not support Ethernet connection. We recommend you use the Lenovo USB-C to Ethernet Adapter for Ethernet connection.
Docking
Docking
Various docking solutions supported via side docking connector (optional) or USB-C.
For more compatible docking solutions, please visit Docking for ThinkPad X13 Gen 2 (AMD)
Monitor Cable
Security & Privacy
Security
Manageability
Service
Warranty[1]
Base Warranty**
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 1-year limited onsite service
- 3-year (1-yr battery) courier or carry-in service
- 3-year (1-yr battery) limited onsite service
- No base warranty
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Operating Environment
Temperature[1]
- Operating: 5°C (41°F) to 35°C (95°F)
- Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
- Storage without package: 5°C (41°F) to 43°C (109°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Accessories
Certifications
Green Certifications[1]
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- EPEAT is registered where applicable, please see https://www.epeat.net for registration status by country.
Other Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
